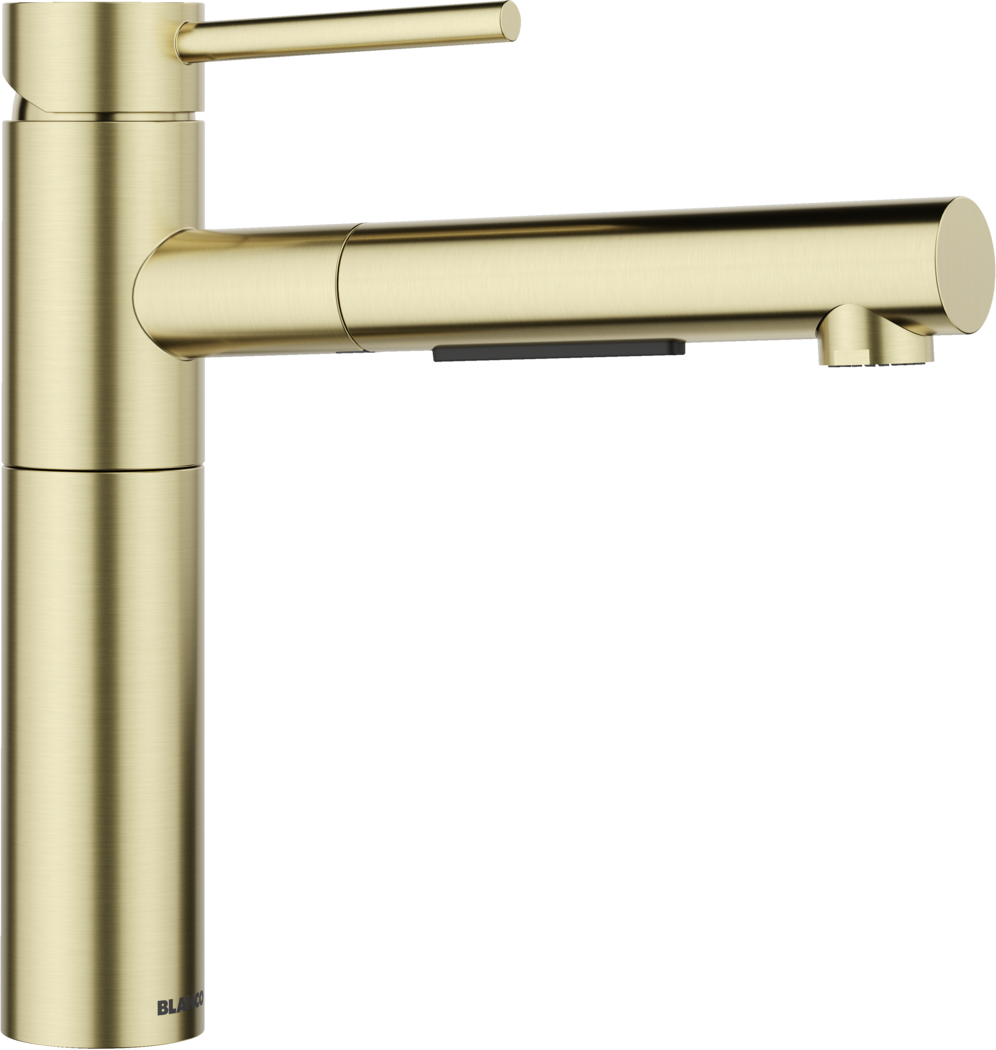

ALTA II
ALTA II
raw material: Stainless steel
color: Satin Gold
wall mounted: No | high/low-pressure: High Pressure | high spout: No
Article Number 527561
Data & Documentation
Data Sheet & Documentation
- 2 spray types
- Yes
- 2-handle
- No
- Senso Faucet
- No
- archetype
- head control
- bridge
- No
- filter faucet
- No
swivelRange
sideViewProduct2D_specSheetDrawingSideView
Models

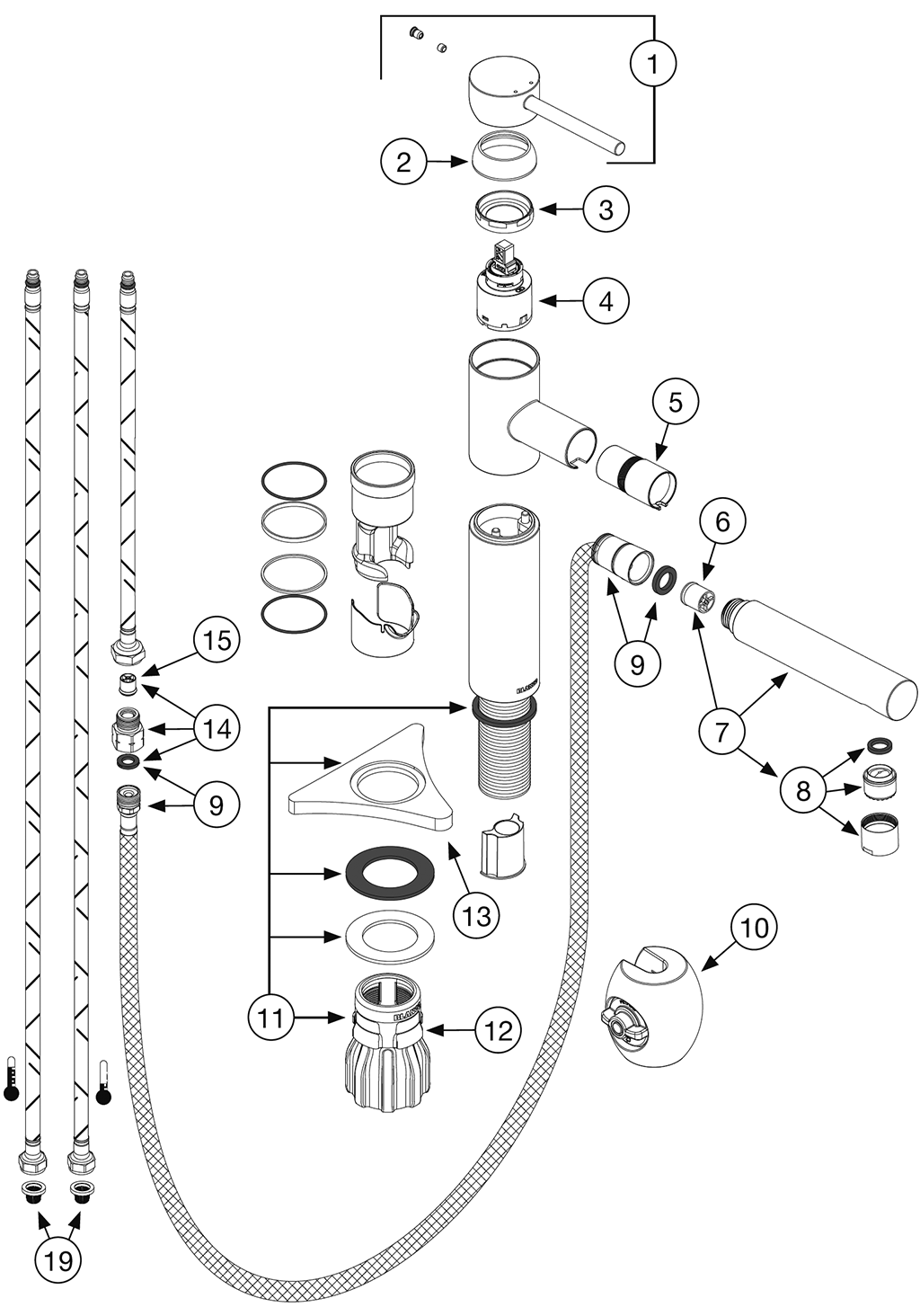

Spare Parts
Spare Parts
| № | Image | Article numbers & descriptions |
|---|---|---|
1 |  | Lever ALTA /-S II satin gold complete Article ID: 124897 Valid From 01/2024 |
2 | | Cover ring ALTA /-S II satin gold Article ID: 124901 Valid From 01/2024 |
3 |  | Locknut cartridge ALTA /-S II Article ID: 124890 Valid From 01/2024 |
4 |  | BLANCO Cartridge 35 mm HP KE Article ID: 121894 Valid From 01/2024 |
5 | | Fitting piece for spout ALTA-S /-F Article ID: 124879 Valid From 01/2024 |
8 |  | Jet regulator IT M22x1 HC Laminar TT satin gold Article ID: 124908 Valid From 01/2024 |
9 |  | Shower hose 120cm 1/2-M15x1 nylon black Article ID: 124892 Valid From 01/2024 |
10 | | Weight for shower hose (445g) Article ID: 124881 Valid From 01/2024 |
11 |  | Assembly set ALTA /-S II Article ID: 124893 Valid From 01/2024 |
12 |  | BLANCOLock I quick fixing nut M33x1,5 ø54,0mm h 74mm LS Article ID: 203370 Valid From 01/2024 |
13 |  | Stabilization triangle mixer taps BLANCO Article ID: 126945 Valid From 01/2024 |
15 |  | Check valve DW10 DN6 NE Article ID: 124122 Valid From 01/2024 |
 | Box spanner hex key AF 2,5 mm Article ID: 139188 Valid From 01/2024 | |
 | Hex box spanner AF 35 mm stainless steel Article ID: 122586 Valid From 01/2024 |
