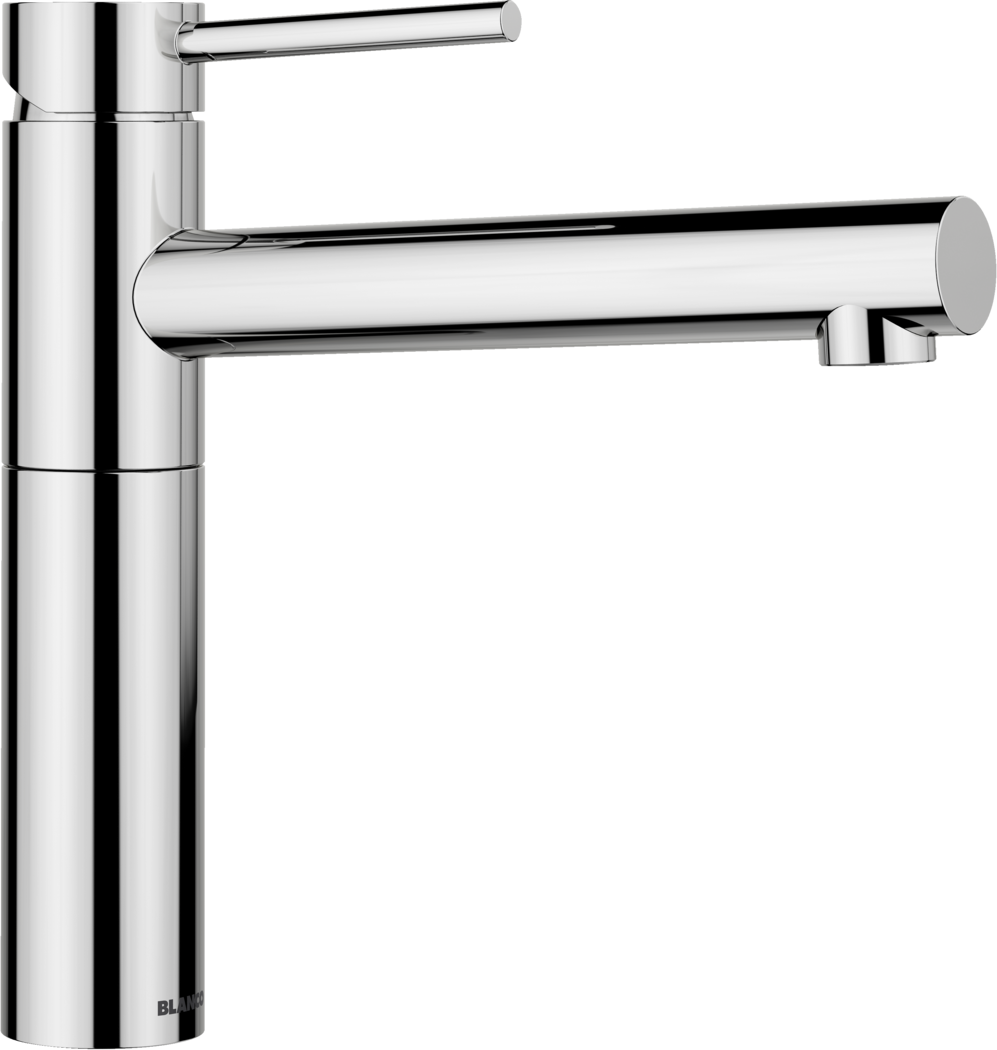

ALTA II
ALTA II Bar
raw material: Brass
color: Chrome
wall mounted: No | high/low-pressure: High Pressure | high spout: No
Article Number 527568
Data & Documentation
Data Sheet & Documentation
- 2 spray types
- Yes
- 2-handle
- No
- Senso Faucet
- No
- archetype
- L-shape
- bridge
- No
- filter faucet
- No
swivelRange
sideViewProduct2D_specSheetDrawingSideView
Models
Spare Parts

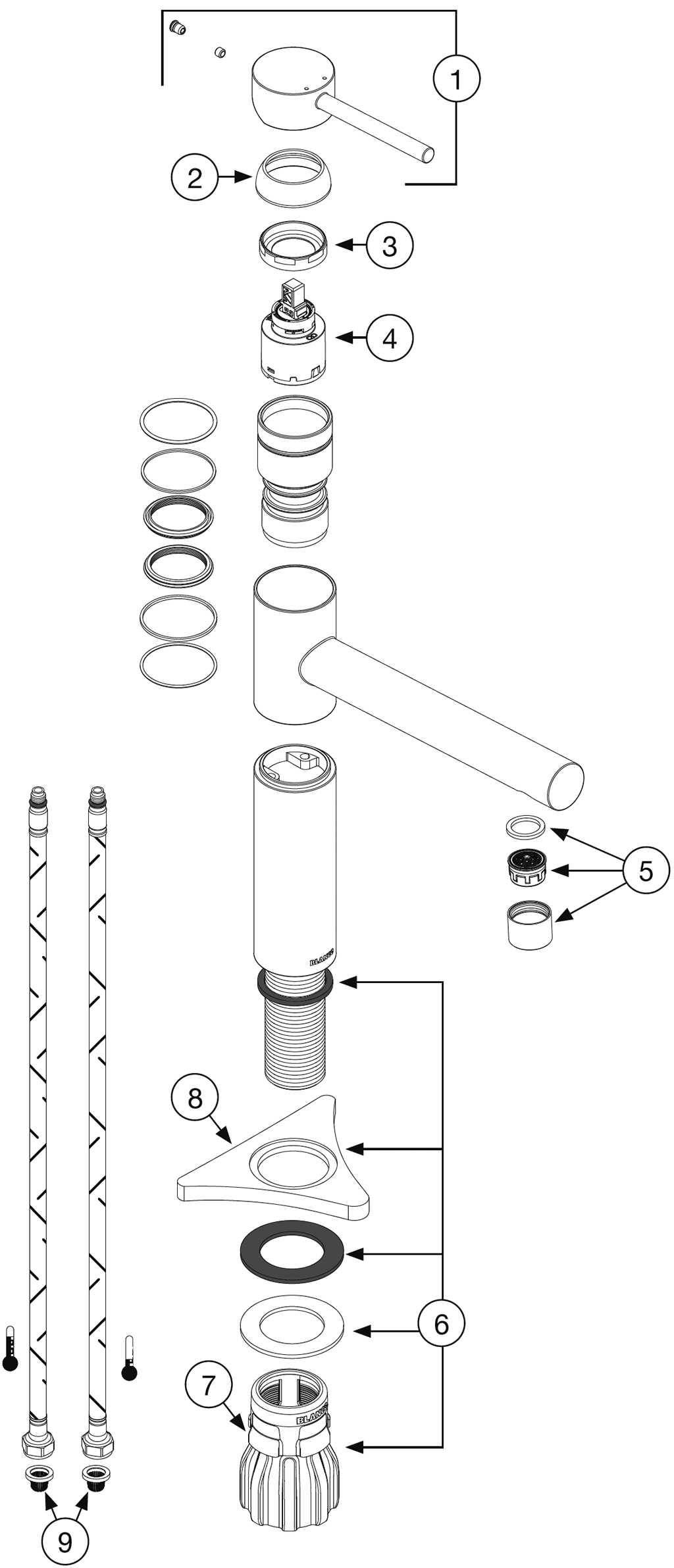

Spare Parts
| № | Image | Article numbers & descriptions |
|---|---|---|
1 |  | Lever ALTA /-S II chrome complete Article ID: 124891 Valid From 01/2024 |
2 |  | Cover ring ALTA /-S II chrome Article ID: 124889 Valid From 01/2024 |
3 |  | Locknut cartridge ALTA /-S II Article ID: 124890 Valid From 01/2024 |
4 |  | BLANCO Cartridge 35 mm HP KE Article ID: 121894 Valid From 01/2024 |
6 |  | Assembly set ALTA /-S II Article ID: 124893 Valid From 01/2024 |
7 |  | BLANCOLock I quick fixing nut M33x1,5 ø54,0mm h 74mm LS Article ID: 203370 Valid From 01/2024 |
8 |  | Stabilization triangle mixer taps BLANCO Article ID: 126945 Valid From 01/2024 |
 | Box spanner hex key AF 2,5 mm Article ID: 139188 Valid From 01/2024 | |
 | Hex box spanner AF 35 mm stainless steel Article ID: 122586 Valid From 01/2024 |
